Description
From the leader in residential indoor air quality, this Broan® wall mount chimney range hood is the perfect solution for superior kitchen ventilation with 650 Max Blower CFM and Code Ready™ Technology (CRT) to meet local Make Up Air code installation requirements. Proudly manufactured in Canada, the sleek low-profile design creates a signature look and focal point in the kitchen while ventilating the most polluted room in the home. The quiet operation at working speed is 1.4 sones, equivalent to a refrigerator running, and wont impact daily activities. At Broan-NuTone we believe that better quality of air means better quality of life.
Product availability
Features

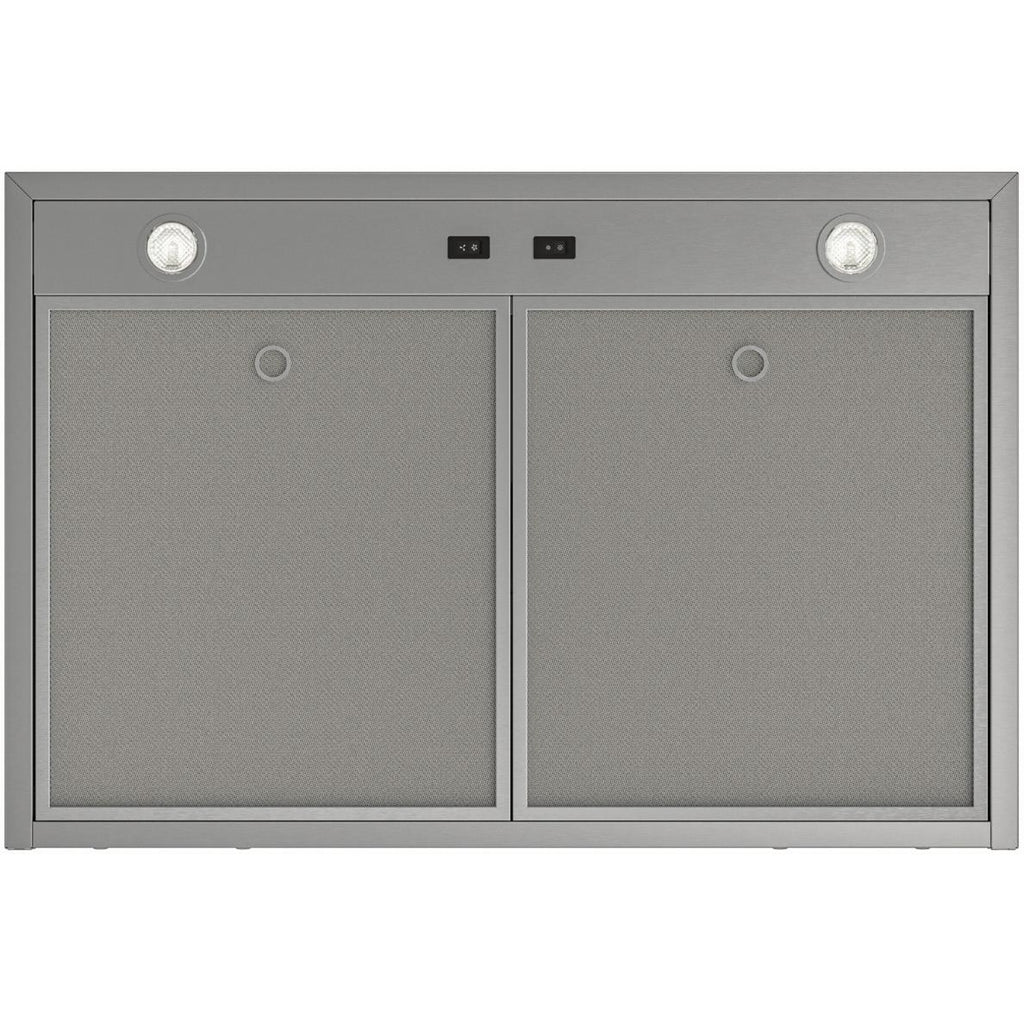

MICRO-MESH FILTERS
Dishwasher-safe, micro-mesh filters provide efficient grease removal and install without tools. Upgrade with optional filter designs best suited to your cooking and style preferences.
Additional Features
CODE READY™ TECHNOLOGY
Code Ready™ Technology (CRT) to meet local Make Up Air code installation requirements. Set the maximum blower speed relative to any required Make-Up Air regulations based on local codes.
Specifications
General
Series Name
EWS
Blower Included
Yes
Airflow
650 CFM
Style
Chimney
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Wall Mount
Features
Dishwasher-Proof Filters
Yes
Technologies
Code Ready™ Technology (CRT)
Ducting Information
• Duct Direction: Horizontal/Vertical
• 3.25 x 10-inch or 6-inch round
• Ductless Recirculation Capable
• 3.25 x 10-inch or 6-inch round
• Ductless Recirculation Capable
Speeds
Speed Levels: 3
Additional Information
• Seamless low-profile design
• Hidden controls offers a sleek appearance that is easy to clean
• Lighting Type: LED
• Light Levels: 2
• Accommodates Ceiling Height: 9
• Minimum Height Above Cooktop: 24
• Convertible with Kit
• 2 High efficiency micro filters to trap grease and cooking pollutants, easy to clean and dishwasher safe
• Low volume of 1.4 Sones
• Hidden controls offers a sleek appearance that is easy to clean
• Lighting Type: LED
• Light Levels: 2
• Accommodates Ceiling Height: 9
• Minimum Height Above Cooktop: 24
• Convertible with Kit
• 2 High efficiency micro filters to trap grease and cooking pollutants, easy to clean and dishwasher safe
• Low volume of 1.4 Sones
Electrical Information
Information
• Rated Voltage: 120
• 60 Hz
• 3.4 AMPS
• 60 Hz
• 3.4 AMPS
Certifications and Approvals
Hvi Certified
Yes
Energy Star Certified
No
Information
• cULus
• ADA Capable (kit sold separately)
• ADA Capable (kit sold separately)
Accessories
Optional
• Non-Duct Kit: ANKWCPST1
• Flue Extension (9' to 11' ceiling height): AEWCST1SS
• Make-up Air Dampers: MD6TU, MD8TU and MD10TU
• ADA Kit: HAWSK3
• Flue Extension (9' to 11' ceiling height): AEWCST1SS
• Make-up Air Dampers: MD6TU, MD8TU and MD10TU
• ADA Kit: HAWSK3

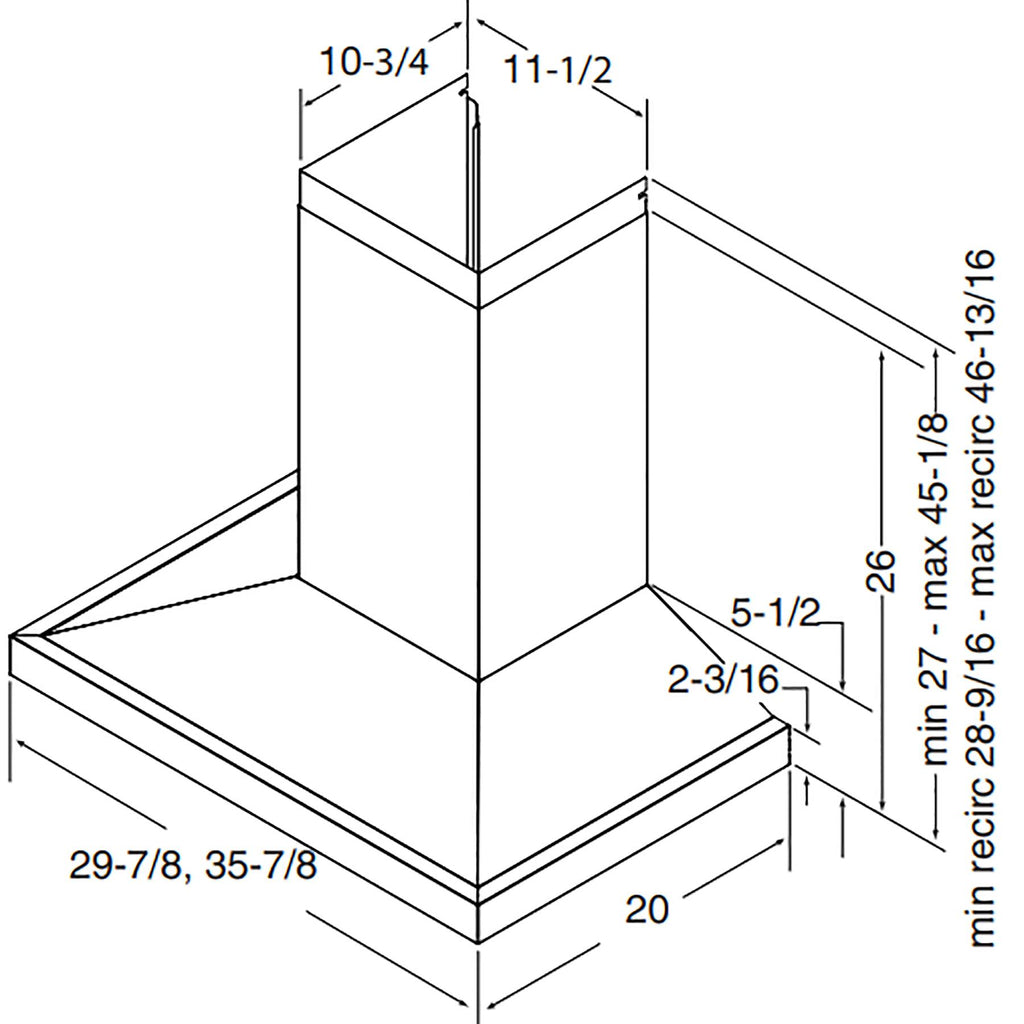

Dimensions
Class Width
36"
Width
36 inch(es) / 91.44 cm
Height
27 inch(es) / 68.58 cm
Depth
20 inch(es) / 50.8 cm
Warranty
Warranty
1 Year limited warranty
